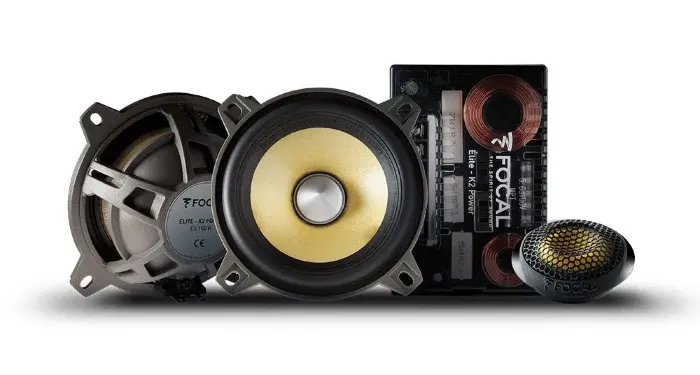

Focal ES100K

Way Component Kit
⋅ Inverted dome “M”-shaped tweeter

⋅ New shape of cone

⋅ High displacement

⋅ Compact crossover

 Specifications:
diameter 4″ (100mm)
voice coil diameter 0-13/16″ (20mm)
voice coil height 0-1/3″(8.5mm)
motor Neodymium
tweeter TKM (“M” profile aramid fiber inverted dome)
cone Composite K2 Power “W” sandwich cone
surround Tuned Mass Damper (TMD)
separated crossover 12/12dB (3.5kHz)
tweeter adjustable level +3; 0; -3dB/oct
max power 120W
nominal power 60W RMS
sensitivity (2.83V/1m) 90dB
frequency response 110Hz-22kHz
impedance 4 Ω
impedance Supplied grilles
