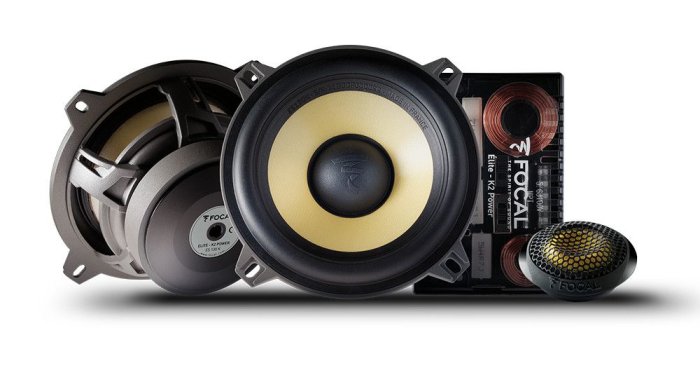

Focal ES130K

2-Way Component Kit

⋅  Inverted dome “M”-shaped tweeter

⋅  High linearity

⋅  High SPL (for the size)

 Specifications:

diameter 5″ (100mm)
voice coil diameter 1″ (25mm)
voice coil height 0-1/2(12mm)
motor Magnet
tweeter TKM (“M” profile aramid fiber inverted dome)
cone Composite K2 Power “W” sandwich cone
surround Tuned Mass Damper (TMD)
separated crossover 6-12/12dB (3.5kHz)
tweeter adjustable level +3; 0; -3dB/oct
max power 160W
nominal power 80W RMS
sensitivity (2.83V/1m) 90dB
frequency response 65Hz-22kHz
impedance 4 Ω
impedance Supplied grilles
