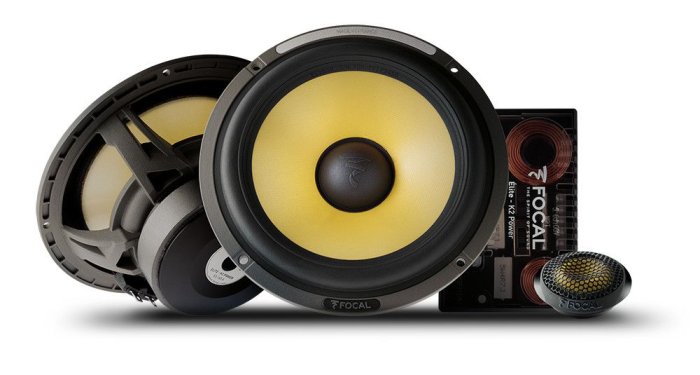

Focal ES165K

2-Way Component Kit

⋅  Inverted dome “M”-shaped tweeter

⋅  Tweeter easy to install (supplied with accessories)

⋅  1-1/4 (32mm) VC diameter for higher performance

 Specifications:

diameter 6-1/2″ (165mm)
voice coil diameter 1-1/4″ (32mm)
voice coil height 0-9/16(15mm)
motor Magnet
tweeter TKM (“M” profile aramid fiber inverted dome)
cone Composite K2 Power “W” sandwich cone
surround Tuned Mass Damper (TMD)
separated crossover 6-12/12dB (3.5kHz)
tweeter adjustable level +3; 0; -3dB/oct
max power 200W
nominal power 100W RMS
sensitivity (2.83V/1m) 90.8dB
frequency response 60Hz-22kHz
impedance 4 Ω
impedance Supplied grilles
