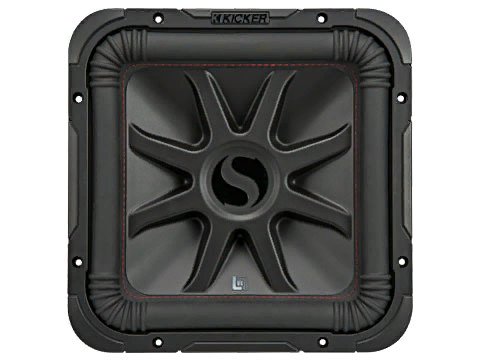

Kicker L7R124

The 12-inch L7R Square Sub moves more air and delivers bigger bass than circular subs, so you get more bump out of every watt!

The engineers at KICKER HQ designed the L7R to give you more bass than a circular sub, without a larger enclosure. Welcome to the world of square sub perfection!

FEATURES

- Dual four-Ohm Voice Coil
- Wrap Around Gasketing
- Patented Ribbed Corners
- Injection-Molded SoloKon Woofer
- 360-Degree Back Bracing
- UniPlate Back Plate And Pole Piece
- Bumped Back Plate
- Thick Tinsel Leads
- Large Ceramic Magnet
- Steel Basket With Spoke Design
- Nickel Plated Speaker Terminals

The L7R 12-Inch Subwoofer works best with a sealed or ported enclosure and 600 watts of recommended power.

SPECIFICATIONS

- Size - 12" (30 cm)
- Rated Impedance - 4 Ohm
- Sensitivity - 86.7 1W, 1m
- Max Power - 1200 W
- RMS Power - 600 W

- Mounting Depth - 6 7/8" (17.4 cm)
- Mounting Diameter - 11 1/16" (28.1 cm)
- Min Sealed Box - 0.88 cu. ft. (24.92 L)
- Max Sealed Box - 2.0 cu. ft. (56.64 L)
- Min Vented Box - 1.75 cu. ft. (49.6 L)
- Max Vented Box - 3.25 cu. ft. (92.0 L)
