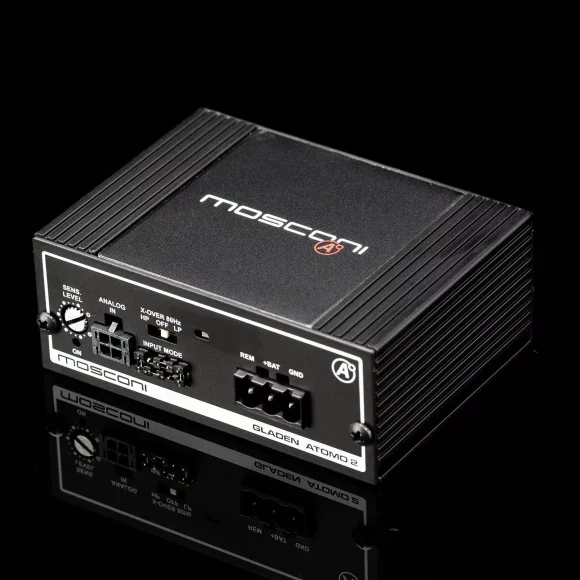

Mosconi Atomo 2

Способ доставки

Рассчитываем стоимость доставки...

Рассчитываем стоимость доставки...

Рассчитываем стоимость доставки...

Вся Почта России

Рассчитываем стоимость доставки...

Характеристики

Dimensions	86 x 65 x 34 mm
Weight	275 g
Overall efficiency	> 75 %
Output power rms @ 4ω	100 W x 2 or 220 W x 1
Output power rms @ 2ω	110 W x 2
Power supply voltage	10 - 16 V
Dc-dc converter typology	Unregulated - Push Pull
External fuse	1 x 15 A
Power-on/power-off voltage threshold	9 V / 6 V
Mute delay time	3 secs
Autosense power-on (hl only)	BTL source only
Standby current	< 0.1 mA (typical)
Idle current	0.47 A @ 14.4 V
Thermal cutoff threshold	93 °C (± 5 %)
T.h.d. @ 4ohm	< 0.3 % (1 kHz / 90 Power rating ref)
T.h.d. @ 2ohm	< 0.5 % (1 kHz / 90 Power rating ref)
Minimum load	2 Ohm with musical signal
Low level input sensitivity range	0.4 ÷ 5 Vrms
High level input sensitivity range	1.6 ÷ 20 Vrms
Low level input impedance	> 15 kOhm
High level input impedance	21 Ohm (dummy load with jumper)
Ground reference (ll only)	OPEN - 21Ohm
Onboard filter configuration	OFF - HP - LP
Onboard filter slope	12 dB/Oct
Onboard filter frequency	80 Hz
Start&stop compliance	YES
Low/high level input	Micro-Fit
Speaker out	Mini-Fit
Power supply	Mini-Fit
Finishing	Black anodized
Bandwidth (-3db ÷ 10w)	5 Hz ÷ 40 kHz
Производитель	Mosconi

Купить Mosconi Atomo 2 от производителя Mosconi можно с доставкой или самовывозом.

ATOMO 2 - Maximum performance in the smallest of spaces

Extremely compact, powerful 2-channel amplifier
Wide input voltage range 0.4 Vrms - 5 Vrms (low level) / 1.6 Vrms - 20 Vrms (high level)
Inputs flexibly configurable (floating / fixed ground, switchable load resistors)
Remote detection (BTL)
High pass / low pass filter. Inputs designed in Molex industry standard (Micro-Fit)
12 V and 24 V versions
