Phoenix Gold ZX5CXS
Информация о доставке
Способ доставки
СДЭК
Рассчитываем стоимость доставки...
Boxberry
Рассчитываем стоимость доставки...
Деловые Линии
Рассчитываем стоимость доставки...
Вся Почта России
Рассчитываем стоимость доставки...
- Характеристики
- Обзор
- Отзывы0
Характеристики
Файлы | https://phoenixgold-eu.com/wp-content/uploads/2025/04/ZX_Series_ZX5CXS_ProductManual_220724.pdf |
Производитель | Phoenix Gold |
Обзор

Купить Phoenix Gold ZX5CXS от производителя Phoenix Gold можно с доставкой или самовывозом.

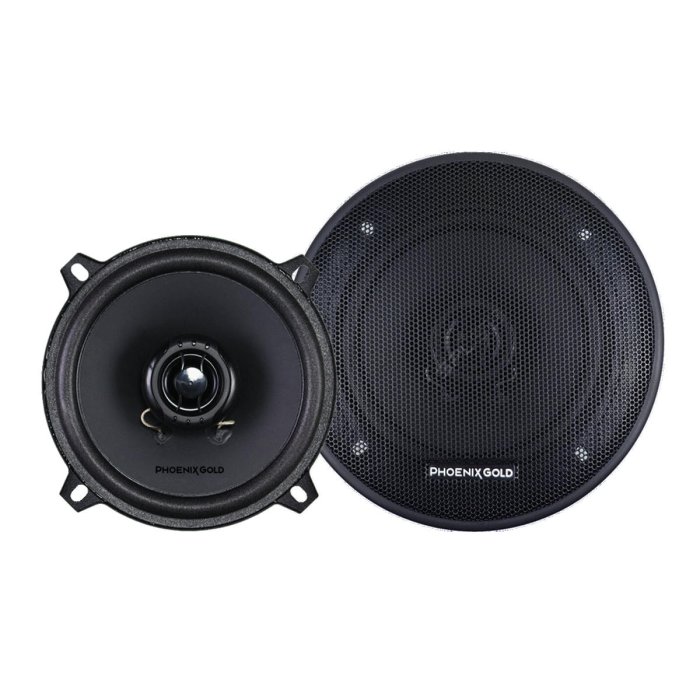

Experience superior sound quality with the Phoenix Gold ZX5CXS, a high-performance 5” 2-way coaxial speaker designed for clarity and efficiency. This compact yet powerful speaker system delivers crisp highs, rich midrange, and a balanced sound profile, making it a perfect upgrade for any car audio setup.
With 60W RMS power handling and a peak power of 180W, the ZX4CXS provides impressive audio performance in a small form factor. The 87dB sensitivity ensures efficient sound output, while the 100Hz - 20kHz frequency response captures a full range of sound.
Built for durability and precision, the ZX5CXS features a laminated-treated paper cone for natural sound reproduction, a 19mm balanced driver Mylar tweeter for crisp highs, and a polyimide voice coil for enhanced performance. The triple-layer UV-treated foam surround enhances longevity, and the rigid powder-coated steel frame ensures stability.
The ZX5CXS is designed for easy installation and includes speaker grills for protection and style.
ZX5CXS Specifications:
Speaker Type: 2-Way Coaxial Speaker
Speaker Size: 5” (130mm)
Frequency Response: 100Hz - 20kHz
Power Handling (RMS): 60W
Power Handling (MAX): 180W
Impedance: 4Ω
Sensitivity: 87dB (1W/1m)
Mounting Depth: 55mm
Mounting Diameter: 120mm
Outer Diameter: 130mm (130mm including ears)
Speaker Grills: Included
Unit: Sold as pairs
Weight (Each Speaker): 0.75 kg
T/S PARAMETERS
Re: 3.6 Ohm
Fs: 100 Hz
Qms: 4.869
Qes: 1.359
Qts: 1.062
Cms: 578.125 μM/N
Vas: 7.414 L
BL: 2.882 Tm
Sd: 95.03 cm²
Mms: 5.878 g
EBP: 63
Why choose Phoenix Gold:
Phoenix Gold exists to give you a car audio experience of musical realism that will have you questioning if you’re riding around in a music studio or sitting in the front row of a rock concert. Our product line is the result of a continued dedication to our key values of performance, innovation, quality, and excellence, bringing you The Gold Standard in Sound.
The ZX5CXS 5.25″ (130mm) 2-way Coaxial Speaker combines sleek design with superior audio performance.
The ZX5CXS speakers are expertly crafted to deliver a smooth and efficient sound experience. They are packed into slim dimensions that seamlessly integrate into your car’s audio system. With 60W RMS power handling and a peak power of 180W, this speaker delivers exceptional sound clarity and deep bass.
